ChemCubed ElectroUV3D-1216 — Additive Electronics 3D Printer (Desktop)
Made in USA- Type — Desktop additive electronics (AME) printer
- Print platform — 12" × 16" (30.5 × 40.6 cm)
- Channels — 5 (4 dielectric, 1 conductive)
- Resolution — 100µm features · 10µm accuracy
- Curing — UV · Power 110/220 VAC
ChemCubed ElectroUV3D-1216 — Additive Electronics 3D Printer (Desktop)

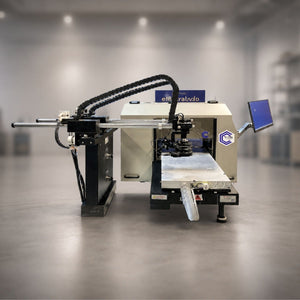

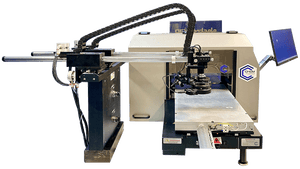

The ChemCubed ElectroUV3D-1216™ is a desktop, multi-layer, multi-material additive printer for electronics — the ideal platform for prototypes and R&D in additively manufactured electronics (AME). It prints conductive and dielectric layers in a single process using ChemCubed’s particle-free ElectroJet™ inks.
Distributed by IIID MAX, authorized reseller.
Technical Specifications
| Print Head Type | Epson I3200-S1 |
| Print Resolution | 100µm features with 200µm spacing · 10µm accuracy |
| Printing Channels | 5 printing channels (4 dielectric, 1 conductive) |
| Ink Types | ElectroJet™ particle-free conductive inks and dielectric inks |
| Ink Supply | Intelligent ink supply system with ink-shortage alarm |
Machine Specifications
| Printer Size | 38" W x 35" D x 24" H (96.5 x 88.9 x 61 cm) |
| Printer Weight | 132.3 lbs / 60 kg |
| Printer Platform | 12" x 16" (30.5 x 40.6 cm) |
| Curing | UV curing system with heated vacuum suction platform |
| Power Requirements | 110 / 220 VAC |
| Form Factor | Desktop — compact, portable, ideal for prototypes and R&D |
Sold on a quote basis. Pricing, logistics, and export documentation (including duty-free handling under CAFTA-DR where applicable) are managed by IIID MAX. Contact us for a customized quote for your region.
Request a Quote
ChemCubed ElectroUV3D-1216 — Additive Electronics 3D Printer (Desktop) is configured and sold on a quote basis — we will send pricing, configuration options, and lead time for your region.
- Factory pricing for your region
- Installation & operator training
- 1-year warranty + support
- Export & logistics handled
