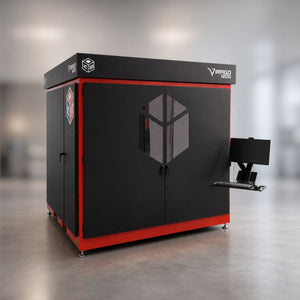

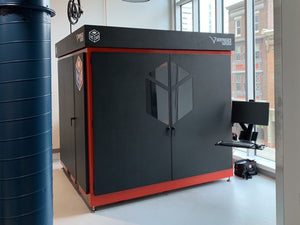

IC3D Virago 1200 — Large-Format Industrial FDM 3D Printer
Made in USA- Technology — Fused Filament Fabrication (FFF)
- Build volume — 1,883,000 cm³ (67.35 ft³)
- Build size — 1250 × 1250 × 1205 mm
- Tool head — TriFLX 3-tool changer (filament + pellet)
- Max temperature — 290°C · Designed & built in the USA
IC3D Virago 1200 — Large-Format Industrial FDM 3D Printer
The IC3D Virago 1200™ delivers precision, power, and flexibility at scale — consistent 3D printing of oversized parts across a wide range of engineering-grade materials. Designed and assembled in Columbus, Ohio, USA, and built for round-the-clock, lights-out production.
Distributed by IIID MAX, authorized reseller.
Highlights
- TriFlex™ three-tool changer — three modular tool heads eliminate failed jobs and enable true multi-material manufacturing; combine filament and pellet extrusion on one platform.
- Four-point kinematic Z-axis — automatically squares the gantry to the bed and runs a 35-point mesh before every print. No manual leveling.
- Machined steel frame — a rigid foundation for precision at scale, built for 24/7 production.
Build & Motion
| 3D Printing Technology | Fused Filament Fabrication (FFF) |
| Single Tool Head Build Area (X, Y, Z) | 1250 x 1250 x 1205 mm (49.5 x 49.5 x 47.5 in) |
| TriFLX™ Build Area (X, Y, Z) | 1050 x 1250 x 1205 mm (41.5 x 49 x 47.5 in) |
| Build Volume | 1,883,000 cm³ (67.35 ft³) |
| Maximum Travel Speed | 500 mm/s |
| Motion System | THK ball-screw linear actuators · NSK bearings |
| Bed Leveling | Automated 35-point mesh mapping · automated Z-axis tramming |
| Detection | Filament runout and jam detection |
Tool Heads
TriFlex™ Three Tool Changer: three modular tool heads (filament, pellet-fed, or both); locking primary extruder uses 50 lb of force to drive the secondary/tertiary head.
| FDM Filament Tool Head | Bondtech LGX® dual-gear extruder · Slice Engineering Mosquito® Magnum+ all-metal hot end (up to 290°C) · flow rates up to ~90 mm³/s |
| Filament Nozzle | 0.6 mm standard (0.4–2.5 mm available) · optional hardened-steel heads for abrasive/fiber-reinforced materials |
| Filament Diameter | 1.75 mm and 2.85 mm |
| Pellet Feed Tool Head (optional) | Flow rates up to 500 mm³/s (2.5 kg/h) · 2 mm nozzle standard (1–5 mm available) · all-metal hot end up to 500°C |
Build Chamber & Platform
| Heated Print Surface | 6.75 kW rapid-heating surface · 3 x 3 grid of 9 individually addressable modular heaters |
| Build Platform | 1/4 in machined steel platform · magnetic flex plate · steel print surface |
| Print Surface Temperature | Up to 130°C standard |
| Chamber | Fully enclosed · active chamber heating optional |
| Materials Handling | Filament dryer included · enclosed filament compartment optional |
Material Library
ABS, ASA, PETG, CF-PETG, Recycled PETG, PLA, UV-PETG, HIPS, PC Alloys, PolyHex™, Nylons (PA), High-Temperature ABS, Glass Fiber Composites, Carbon Fiber Composites — and all open materials.
Software & Electronics
Recommended slicer: Simplify3D · Duet3 6HC controller with CANBUS-connected Duet3 tool boards · Ethernet connectivity · UPS included · integrated onboard workstation.
Reliability & Build
Heavy steel weldment frame · THK ball-screw linear actuators · NSK bearings · igus flex cabling and energy chain · automotive-grade connectors.
Installation & Support

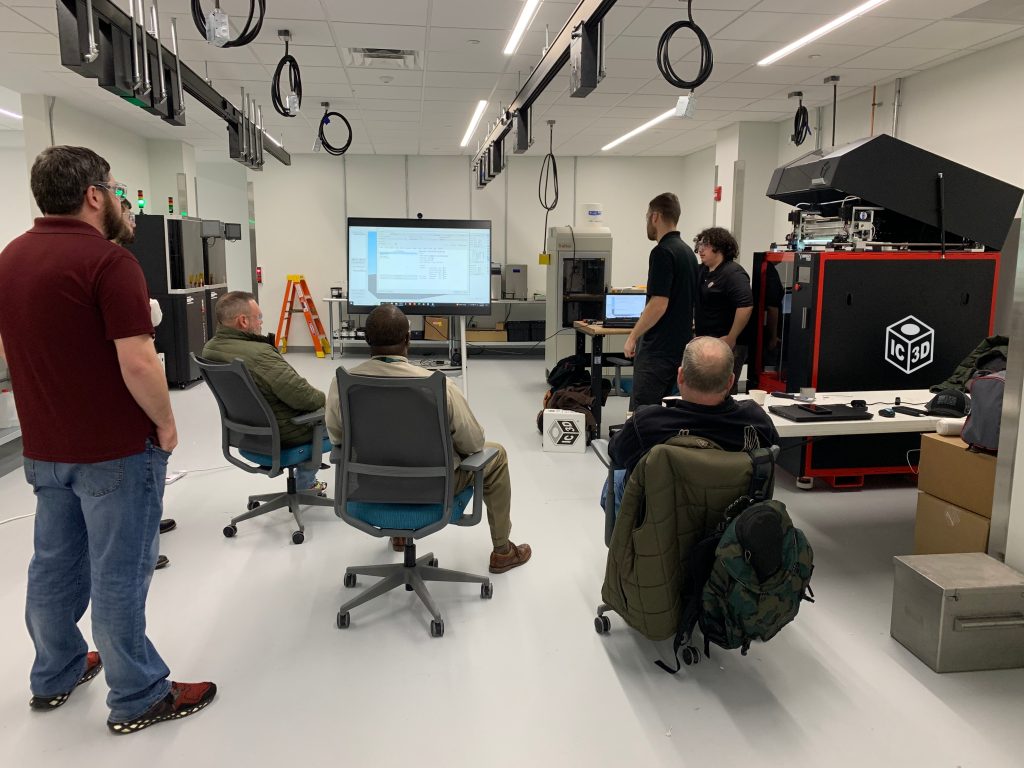

- IC3D engineer-led installation & setup, onsite operator training, and custom slicing-profile development.
- 1-year parts warranty · extended warranties, service & materials contracts, and a zero-downtime guarantee available · engineering support for applications development.
- Operating footprint ~11.6 x 11.6 ft · 220 V power · built-in forklift points.
Sold on a quote basis. Pricing, logistics, and export documentation (including duty-free handling under CAFTA-DR where applicable) are managed by IIID MAX. Contact us for a customized quote for your region.
