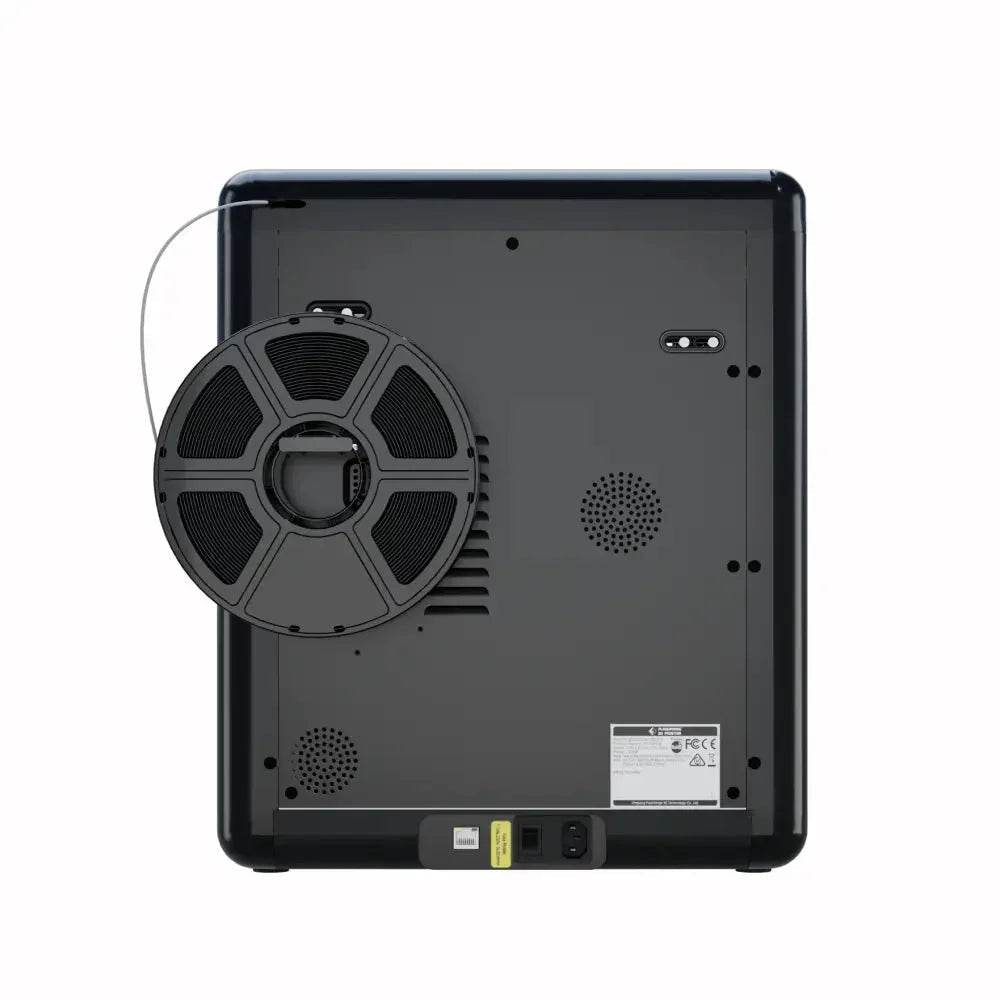

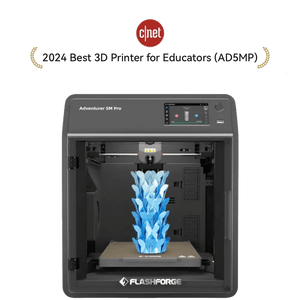

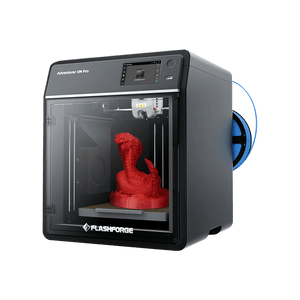

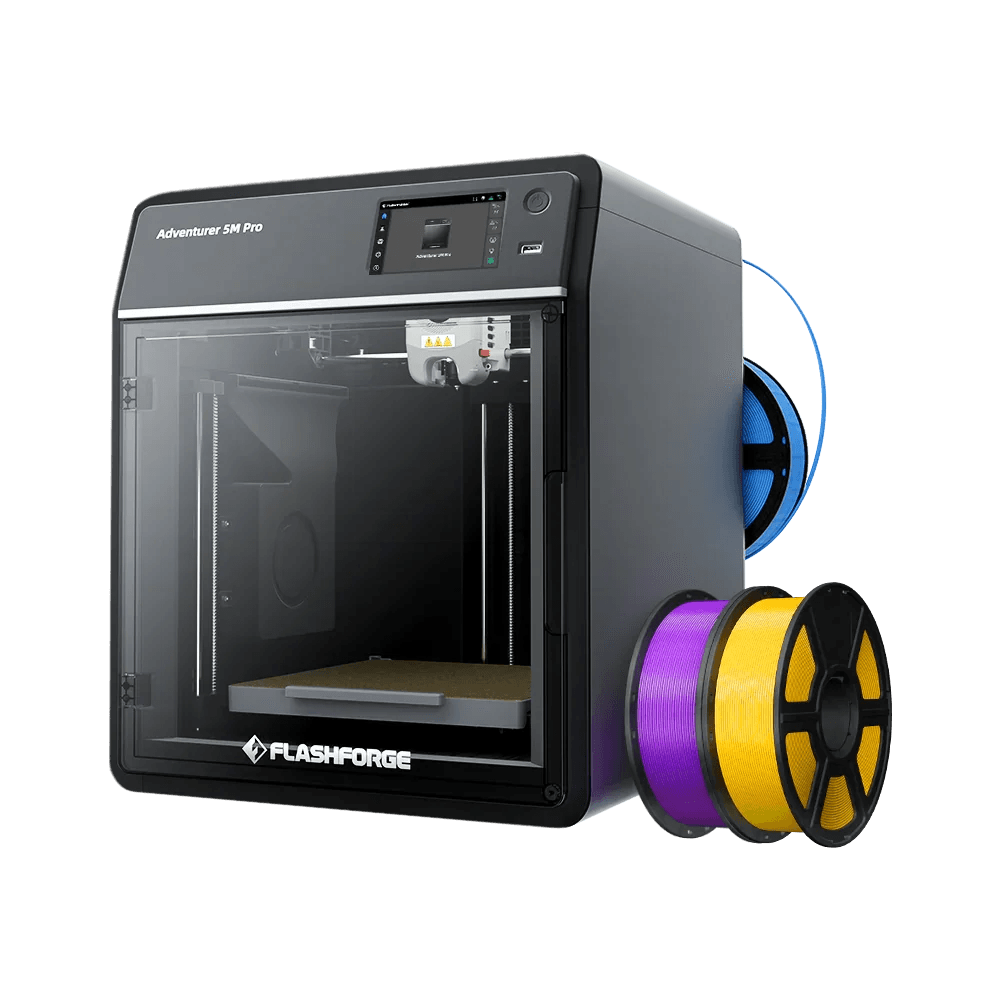

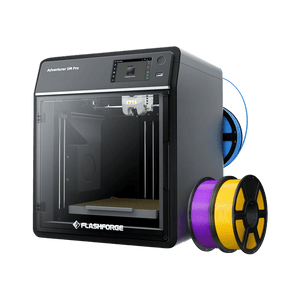

Flashforge Adventurer 5M Pro
Flashforge Adventurer 5M Pro
Flashforge Adventurer 5M Pro
- High speed - 600 mm/s travel speed, 300 mm/s print speed
- Vibration compensation
- High-temperature extruder 280C
- Quick release nozzle
- Fully enclosed build chamber features HEPA & activated carbon air filtration
- Filament runout detection and power loss recovery
- Built-in camera
What Comes With the FlashForge Adventurer 5M Pro?
- Adventurer 5M Pro 3D Printer
- 250G PLA Filament
- Power Cord
- Quick Start Guide
- 0.6 mm Nozzle Kit
- Screw Driver
- Hex Wrench Set
- Grease
- USB Drive
- Leveling Tool
- Filament Holder
- Pliers
- Glue
Technical Specifications
Printing
- Print Volume: 220mm x 220mm x 220mm (8.7" x 8.7" x 8.7")
- Print Speed: 300 mm/s
- Travel Speed: 600 mm/s
- Acceleration: 20,000 mm/s^2
- Printing Precision: ±0.2mm
- Position Precision: 0.025 mm
- Layer Thickness: 0.1mm - 0.4mm
- Nozzle Diameter: 0.4mm Standard (Optional 0.6mm and 0.8mm)
- Maximum Extruder Temperature: 280°C
- Heated Build Plate Temperature: Up to 110°C
- Filament Diameter: 1.75 mm
- Filament Compatibility: PA-CF, PA-GF, PETG-CF, PETG-GF, PA, PC, ABS, ASA, HIPS, PLA-CF, PETG, PLA
Mechanical & Dimensions
- Number of Extruders: One
- Printer Dimensions: 380mm x 400mm x 453mm (15" x 15.7" x 17.8")
- Net Weight: 44.3 lbs (20.1 kg)
- Packaging Dimensions: 460mm x 480mm x 530mm (18" x 19" x 21")
- Gross Weight: 58.4 lbs (26.5 kg)
Electrical
- Power Supply: AC100-240V / DC24V / 13.3A, 320W
- HD Touch Screen: 4.3 inch
- Connectivity: USB Stick, Wi-Fi, Ethernet, Cloud printing
Software
- Software: FlashPrint, Polar Cloud, Cura
- File Input Format: STL / 3MF / OBJ / FPP / BMP / PNG / JPEG
- File Output Format: GX / G
- Supports (OS): Windows XP/Vista/7/8/10, Mac OS 10.9 or later, Linux Ubuntu 20.04 or later
Perfect First Layers with ADM
The AD5M features an advanced Automatic Datum Management (ADM) system for real-time adjustments and auto-leveling, eliminating manual calibration and reducing issues like warping and poor adhesion.
Quick-Release Nozzle
Easily swap nozzles in seconds for hassle-free maintenance and uninterrupted printing. AD5M quick-release design also helps with nozzle cleaning, preventing clogs and ensuring smooth, precise prints with minimal downtime.
Direct-Drive Nozzle
AD5M direct-drive nozzle heats up to 200°C in just 35 seconds, ensuring quick start-up for faster printing. With a 280°C high-melting nozzle, it supports fast extrusion and smooth filament flow, making it perfect for high-speed prints and advanced materials.
Vibration Compensation
AD5M vibration compensation technology reduces surface layer lines and ringing, ensuring smoother and more precise prints. This enhances overall print quality and detail.
Specifications and Guides
- Features: Multi-functional navigation, weather alerts, emergency SOS feature, water-resistant, impact-resistant casing.
- Manuals: User Manual
-
Specifications:
- Weight: 19 Kgs
- Dimensions: 380×400×453mm (excluding the spool holder)
- Connectivity: Bluetooth and Wi-Fi enabled.
| Choose |
AD5M Pro, AD5M Pro+4 PLA (Everyday Color), AD5M Pro+12 PLA (Everyday Color) |
|---|
